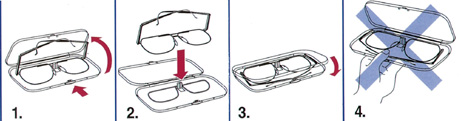

The slimfold ultra frame when not being worn should only be stored in the case provided as no other design of case function. The design and mechanism enables the spectacle frame to fold and collapse into the case very neatly. To achieve this, simply position the spectacle frame over the plastic saddle bridge block fixed on the inside base of the case and fold the temples by hand such that they are in plane parallel to the front. Now push down the case lid until it latches to close. Never attempt to force down the temples by hand as shown in figure-4 as this may damage the mechanism. When the lid is opened by depressing the latch the temple positions are restored to the original state and the spectacles are ready for removal from the case.

super flex temple tips

adjustable temples

The super flex temple tips are made of superior resin that is soft, comfortable and secure when worn. The length of the temples can be shortened to suit individual face measurements by cutting the metal size core in steps of 4 mm .To do this, first remove the screw seated in the plastic temple tips and gently pull the tips. Using a wire cutter snio off the desired length and replace the plastic tip aligning the screw hole. Replace the screw and tighten.

AR020902

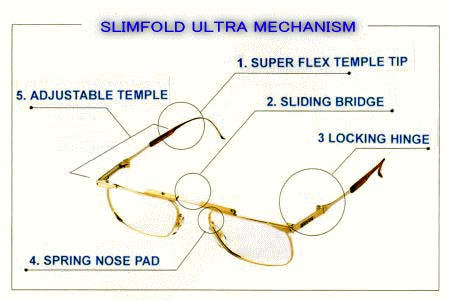

The temples of the slimfold ultra have been developed incorporating a unique locking hinge mechanism. The hinges lock automatically when the temples are opened. This ensures the frame remains horizontally level without twisting while being worn on the face.

AR019502

The soft nose pads are fixed onto spring toggle wires enabling an adjustable and comfortable fit on the bridge of the nose.

   SLIMFOLD ULTRA-SF9003 SPECIFICATIONS

KANDA OPTICAL SLIMFOLD FOLDING SPECTACLE FRAMES OF JAPAN
